MGA-3000 Multi Gas Analyzer

  • #Hydrogen
  • #Sensor
  • #Instrument
  • #H2Detection

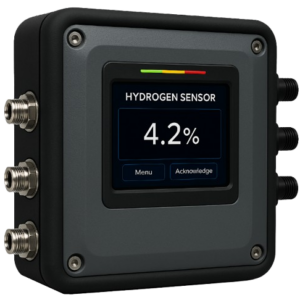

DATAECO™ MGA-3000 Hydrogen Analyzer

Hydrogen Quantification for Pipelines and Process Control

High-precision multi-gas analyzer for hydrogen, methane, and CO₂ detection in ATEX Zone 1 hazardous areas. Designed for refinery process control and pipeline injection monitoring.

Other instruments

MEASUREMENT INSTRUMENT

DATAECO™ MGA-3000 Multi Gas Analyzer

Designed to operate reliably in harsh and hazardous environments, this multi-gas analyzer provides continuous, real-time insight into critical gas compositions. By accurately quantifying hydrogen alongside methane and CO₂, it enables operators to optimise refinery processes, control blending ratios, and ensure safe and compliant pipeline injection. Unlike traditional systems, it delivers fast response times and scalable deployment, supporting both point measurements and distributed monitoring across complex infrastructure.

Headline Features

  • Fast hydrogen detection with high sensitivity
  • Low power consumption, suitable for embedded systems
  • Wide operating hydrogen concentration range (and humidity range)
  • High selectivity against common interfering gases (CH₄, CO₂)
  • Compact, robust package for industrial environments
  • Compatible with external digital or analog readout electronics
Pre-Order
Request Technical Brief

Technical Specifications

Detection & Performance

  • Target Gas
  • Hydrogen (H₂), Methane (CH₄), Carbon Dioxide (CO₂)
  • Detection Range
  • Typical: 0–99.9% vol H₂
  • Repeatability
  • < 0.1%
  • Auxiliary Sensors
  • Temperature & Humidity sensor
  • Sensitivity Resolution
  • 0.05% of the reading
  • Response Time (T90)
  • < 30 sec (projected < 3 s)

Environmental Specifications

  • Operating Temperature
  • -20 °C to +80 °C
  • Storage Temperature
  • -20 °C to +85 °C
  • Operating Humidity
  • Up to 95% RH, non-condensing
  • Pressure
  • Atmospheric pressure (<100 mbar)

Electrical Characteristics

  • Supply Power (Solenoid)
  • 12–28 V (recommended 24 V)
  • Supply Power (4-20mA)
  • 12–28 V (recommended 24 V)
  • Supply Power (Equipment)
  • 12–15 V (recommended 12 V)
  • Supply Power (Modbus)
  • 12–28 V (recommended 24 V)
  • Power Consumption (Average)
  • < 0.6 W
  • Power Consumption (Peak)
  • < 1.2 W

Applications

Delivering reliable performance even in the most demanding environments.

  • Process Control
  • Pipeline Injection
  • Electrolyzers
  • Transformers

Ready to Get Started?

Pre-order your unit or request a technical brief from our engineering team.

Pre-Order
Download Whitepaper

3D Model — Coming Soon
