Fast Sense are always looking for creative annd ambitious molecule management tasks and ready for challenges! Hire Us
technology
A Molecule Management Company
Tiniest Gas Sensor
Filter out the Noise. Giving you just Signal!
The Fast Sense H₂ Gas Sensors can detect and analyse gas mixtures without being affected by cross-sensitivity, providing capabilities for accurate gas measurement, cost-effective distribution & fast analysis of multi-component gas mixtures.
Gas Analysis On a Chip
Fast, Tiny & Affordable IoT Sensors
The Fast Sense H₂ Gas Sensor solution can detect and analyse gas mixtures without being affected by cross-sensitivity, providing capabilities for accurate gas measurement, cost-effective distribution & fast analysis of multi-component gas mixtures.

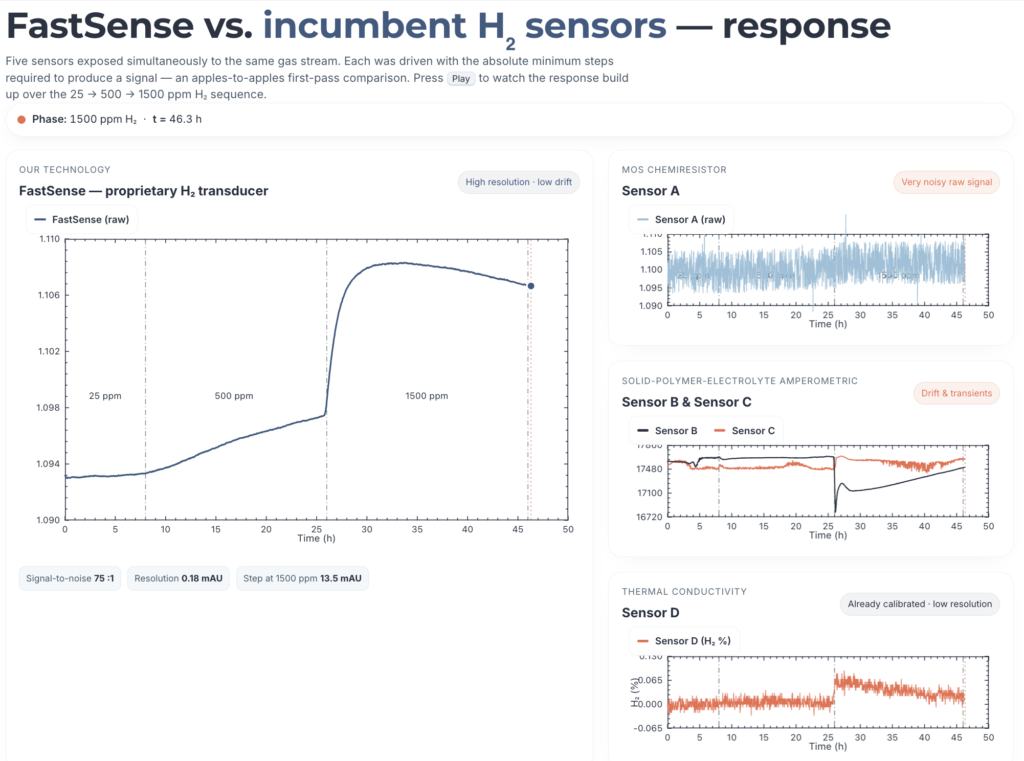

FastSense vs. incumbent H₂ sensors — response
Five sensors exposed simultaneously to the same gas stream.
Each was driven with the absolute minimum steps required to produce a signal — an apples-to-apples
first-pass comparison. Press Play to watch the response build up over the
25 → 500 → 1500 ppm H₂ sequence.
Phase: 25 ppm
·
t = 0.0 h
Our technology
FastSense — proprietary H₂ transducer
FastSense (raw)
Signal-to-noise —
Resolution —
Step at 1500 ppm —
MOS chemiresistor
Sensor A
Sensor A (raw)
Solid-polymer-electrolyte amperometric
Sensor B & Sensor C
Sensor B
Sensor C
Thermal conductivity
Sensor D
Sensor D (H₂ %)
0.0 h / 46.3 h
Speed
Why this matters.
Only one sensor (orange, thermal-conductivity) ships with a calibrated digital output. Every other sensor
here is being read in its raw electrical form — exactly how an integrator first encounters them.
Watch FastSense (deep blue) climb in clean, monotonic steps with sub-mAU noise, while the MOS hash,
electrochemical drift / transient, and the thermal-conductivity sensor's coarse quantisation all become
visible once 1500 ppm H₂ is introduced at t ≈ 26 h.
// Technology Index
The chemiresistor-based sensors are semiconductor-based decorated with engineered nano-catalyst, absorbing the target gas. The sensor is currently ATEX approved for Class I, Zone 1 to ensure the highly sensitive material is explosive-proof for detection of Hydrogen in flammable gases, such as methane and natural gas.
- Know what's in your gas through a data stream of accurate gas mixture readings, including emission, concentration, compound and potential caloric value.
- Fast Sense uses much less power than other industry sensors.
- Fast Sense sensors detect the full range of Hydrogen in flammable gases quickly.
- Sensors have a fail-safe and built-in log diagnostic — if the sensor becomes inoperable, alerting the owner.
- On the fly automated environmental recognition.
- Fundamentals-based energy analysis.
- The sensors have a guaranteed life expectancy of up to five years.

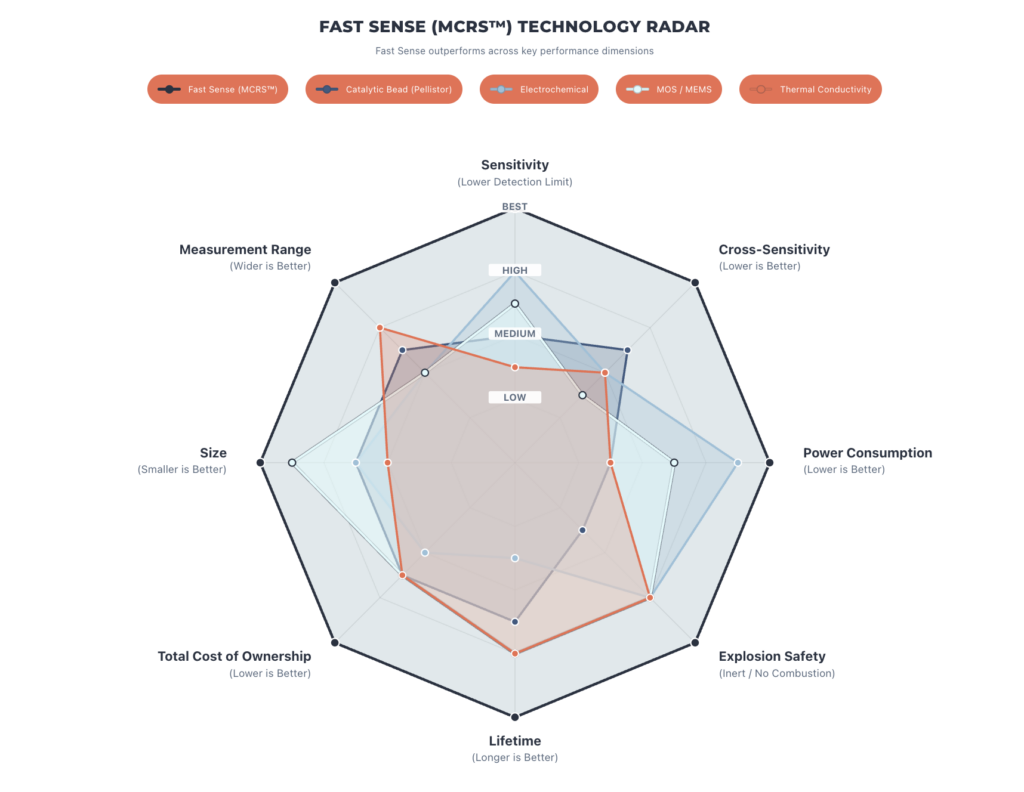

FAST SENSE (MCRS™) TECHNOLOGY RADAR
Fast Sense outperforms across key performance dimensions
Note: Higher values are better for all metrics except Cross-Sensitivity, Power Consumption, Size and Total Cost of Ownership. These are inverted so that higher values always represent better performance.
The chemiresistor-based sensors are semiconductor-based decorated with engineered nano-catalyst, absorbing the target gas. The sensor is currently ATEX approved for Class I, Zone 1 to ensure the highly sensitive material is explosive-proof for detection of Hydrogen in flammable gases, such as methane and natural gas.
- Know what's in your gas through a data stream of accurate gas mixture readings, including emission, concentration, compound and potential caloric value.
- Fast Sense uses much less power than other industry sensors.
- Fast Sense sensors detect the full range of Hydrogen in flammable gases quickly.
- Sensors have a fail-safe and built-in log diagnostic — if the sensor becomes inoperable, alerting the owner.
- On the fly automated environmental recognition.
- Fundamentals-based energy analysis.
- The sensors have a guaranteed life expectancy of up to five years.
// Technology Index
Low Power Consumption
Fast Sense uses much less power than other industry sensors — enabling battery-powered and remote deployments.
ATEX Approved
Class I, Zone 1 approved — explosive-proof for detection of Hydrogen in flammable gases such as methane and natural gas.

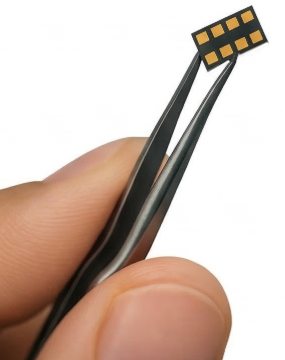

Tiny & Scalable
Chip-scale form factor enables mass production, embeddable integration, and affordable distribution.
H2FAST™ FP-200 Point Detector
The Fast Sense A1R IoT represents a cutting-edge chemiresistor-based sensor meticulously crafted for discerning and communicating blends of hydrogen and methane in gaseous environments.
Our sensors feature a proprietary membrane developed in-house, which selectively allows hydrogen (H₂) to permeate. This unique design triggers a measurable alteration in electrical resistance, facilitating precise quantification of H₂ levels.
Trusted among top tier 1 companies
Industrializing H₂ Sensor Demand, Driving Towards An Integrated Energy Future
At Fast Sense we design human-centered hydrogen sensing and on chip analytics that turn uncertainty into clear action.
Accurate
Quantify
Pulsating
Low Power
Cost Effective
Scalable
Small
Fast
Selective
Nanoscale Sensor Structures Integrated into CMOS Layers
Our innovative solution enables precise monitoring, detection, and analysis of complex gas mixtures with advanced nanoscale sensors embedded within CMOS layers. These sensors are engineered to minimize cross-sensitivity, delivering accurate readings across multi-component gas blends.
Micro Electrodes
CMOS-integrated contacts for real-time impedance measurement.
Passivation Cap
Protective top layer with controlled porosity for gas diffusion.
Nano Sensing Layer
Functionalized nanostructures enabling selective gas adsorption.
Oxide Insulation
Thin dielectric layer isolating sensing elements from substrate noise.
Silicon Substrate
Base layer providing structural support for nanoscale sensor array.
Designed for Preventative Maintenance, Energy Storage, Mixing Process Control, Flow Correction and Gas Delivery.
The development of reliable and scalable Hydrogen Quantification sensor solutions for any hard-to-abate, distribution grids and transportation industries. We bring together deep industry expertise and the latest Materials Science advancements to deliver hydrogen sensing solutions and products that perfectly fit the needs and behavior of their users.
analyzer
DATAECO™ MGA-3000
ATEX approved, high-precision multi-gas analyzer for hydrogen in methane, and CO₂
fixed point
H2FAST™ FP-200
Ultra-compact on-wall fixed-point hydrogen detector with ppm-level sensitivity
Leak Detector
H2FAST™ BD-100
Ultra-compact 12 mm × 12 mm hydrogen leak detector designed for battery safety
01
Materials for Gasses
Engineered nano-catalysts that selectively absorb target gas molecules.
02
Accurate Signal Processing
Precision electronics that convert molecular interactions into reliable data.
03
IoT for Sensor Design
Each sensor has its own unique ID, ideal for multi-node connection.
Use Cases
Dissolved gas analysis for early fault detection in grid infrastructure.
Leak Detection
Identify hydrogen accumulation in industrial facilities and enclosed spaces.
// Sensors IoT
Over 15 Years Engineering Experience
Fast Sense’s sensing technology is available for OEM integration and licensing. Instrument manufacturers, system integrators, and industrial equipment companies can embed our hydrogen sensing modules directly into their products.
Our modular architecture supports custom form factors, communication protocols, and calibration profiles — helping industries get to Net Zero by 2030.
Sales enquiries — Fast Sense
Are you interested in our solutions? Then write us a message. Our sales team will be happy to help you.
