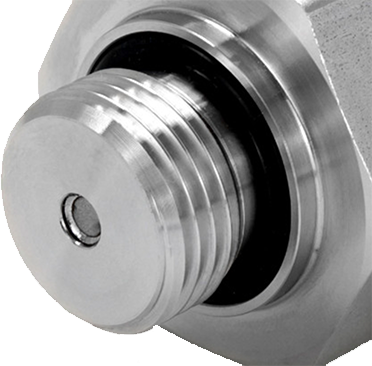

Oil Probe
Sensor
*
In-line hydrogen-in-oil probe sensor for transformer monitoring. Detects dissolved hydrogen at ppm levels for predictive maintenance of power transformers.
In-line
Scroll to explore
Oil Probe Sensor delivers Process Control* grade precision
Fast hydrogen detection with high sensitivity
Low power consumption, suitable for embedded systems
Wide operating hydrogen concentration range
High selectivity against common interfering gases (CH₄, CO₂)
Compact, robust package for industrial environments
Compatible with external digital or analog readout electronics
In-line hydrogen-in-oil probe sensor for transformer monitoring. Detects dissolved hydrogen at ppm levels for predictive maintenance of power transformers.
Fast hydrogen detection with high sensitivity
Technical Specifications
Target Gas
Target Gas
Hydrogen (H₂)
Detection Range
Typical
30-50,000 ppm
Linearity
Linear up to 50,000 ppm
Repeatability
< 50 ppm
Sensitivity
Limit of detection
15 ppm H₂ (in oil)
Limit of quantification
30 ppm H₂ (in oil)
Response Time (T90)
< 30 min
Environmental Specifications
Operating Temperature
0 °C to +80 °C
Storage Temperature
-20 °C to +85 °C
Pressure
up to 1.5 bar
Electrical Characteristics
Supply power (RS-845)
12 V
Supply power (Equipment)
2.7 to 30 V (9V or 12 V recommended)
Power Consumption
Average
< 0.05 W
Peak
< 0.1 W
Fast hydrogen detection with high sensitivity
Low power consumption, suitable for embedded systems
Wide operating hydrogen concentration range
High selectivity against common interfering gases (CH₄, CO₂)
Compact, robust package for industrial environments
Compatible with external digital or analog readout electronics
Engineered for precision
*Built from deep research and field expertise to deliver the accuracy and reliability your operations demand.
ANALYZER Technology
Designed for Process Control*, Utility Transformer applications. Delivering reliable performance even in the most demanding environments.
System Configuration
Select your required specifications to configure this production unit
In-line hydrogen-in-oil probe sensor for transformer monitoring. Detects dissolved hydrogen at ppm levels for predictive maintenance of power transformers.
